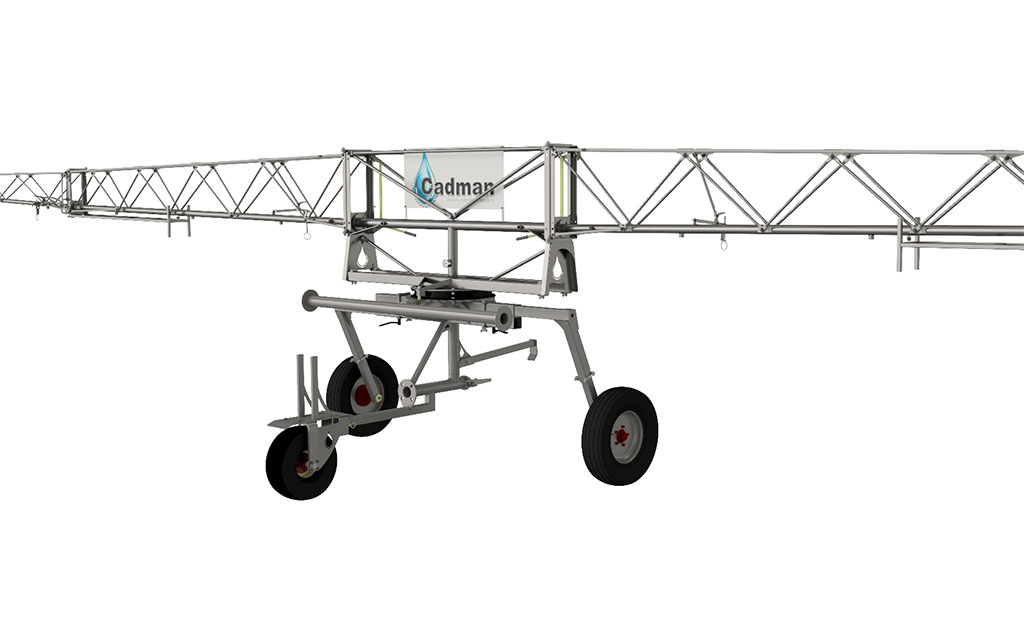

3 Wheel Irrigation Boom

The Cadman 3-Wheel Irrigation Boom is an efficient, low-pressure system designed to deliver uniform water distribution at a fraction of the cost of linear systems. Portable and easy to use, this boom offers precise control over droplet size, making it suitable for a wide variety of crops and soil types. Its galvanized steel construction ensures durability and a long service life, while its design provides both efficiency and versatility in the field.

Benefits

• Controlled droplet size reduces soil damage and erosion
• Large droplets minimize drift; fine droplets protect delicate crops
• Reduces soil capping and protects plants against disease
• Operates at low pressure to reduce pumping costs and stress on pipelines
• Steel, fully galvanized construction guarantees long-term durability

Features

• Efficient, tough, reliable, and versatile system
• Easy single-person folding for quick setup and transport
• Uniform water application promotes consistent crop growth compared to big-gun systems
• Reduces water consumption by up to 30% vs. big-gun systems
• High-efficiency water use allows faster retraction and increased coverage
• Just as efficient as drip irrigation, with added washing and cooling benefits to increase yields

Model CB30

• Boom Length: 99’ (30 m)
• Lane Spacing: 96’ – 157’ (29 – 48 m)
• Flow Range: 51 – 184 GPM (193 – 697 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 13
• Folded Length: 18’ (5.5 m)
• Folded Width: 12’ (3.7 m)
• Track Width: 70” – 165” (1.8 – 4.2 m)
• Height to Nozzle: 4’11” (1.5 m) – 7’5” (2.28 m) with high crop kit
• Height to Top of Structure: 7’ (2.1 m) – 9’6” (2.9 m) with high crop kit
• Weight: 1,650 lbs. (748 kg)

Model CB40

• Boom Length: 131’ (40 m)
• Lane Spacing: 131’ – 200’ (40 – 61 m)
• Flow Range: 73 – 225 GPM (276 – 852 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 17
• Folded Length: 18’ (5.5 m)
• Folded Width: 15’ (4.6 m)
• Track Width: 70” – 165” (1.8 – 4.2 m)
• Height to Nozzle: 4’11” (1.5 m)
• Height to Top of Structure: 7’8” (2.37 m)
• Weight: 2,000 lbs. (907 kg)
