Product Description

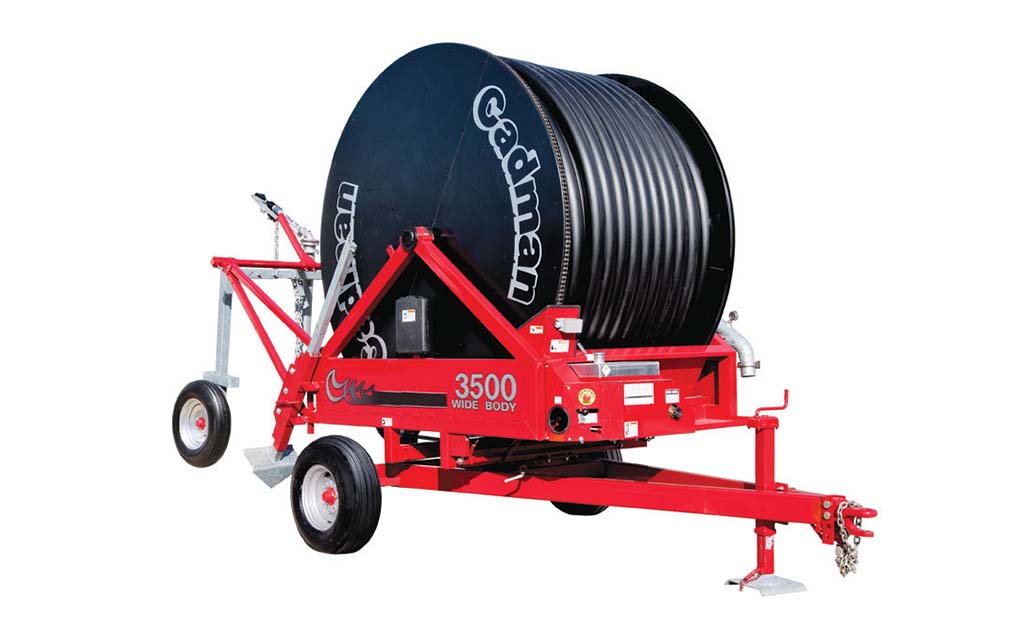

The Cadman 3500WB Traveller is engineered for maximum durability, higher flow rates, and reliable multi-direction operation. With its oversized drum, slewing ring turntable, and advanced Cadman transmission, it delivers powerful irrigation performance with set-and-forget efficiency for demanding agricultural use.
- Extended capacity – designed for higher flow rates and efficient coverage.
- Heavy-duty construction – strongest drum, slewing ring turntable, and lubricated bearings for years of trouble-free operation.
- Efficient operation – Honda OHV engine with Cadman transmission (10-year warranty).
- Smart safety – auto-stop, mis-wrap shutoff, and accurate hose indexing.
Product Info
- Model: Cadman 3500WB Traveller
- Engine & Drive: Honda OHV 4 HP engine with Cadman transmission (10-year warranty)
- Drum & Frame: Heavy-duty oversized drum with positive traction chain drive; slewing ring turntable for multi-direction pulls; long-lasting lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
- Hose I.D.: 3.5″ (89 mm)
- Hose Length: 925′ (281 m)
- Input Pressure at Traveller: 130–150 PSI (9–10 bar)
- Gun Pressure: 80–90 PSI (5.5–6 bar)
- Flow Rate: 270–440 GPM (1022–1665 L/min)
- Plumbing: 4″ inlet plumbing reduces friction loss, maximizing pressure at the gun
- Control & Safety: Auto-stop at end of pull, hose mis-wrap safety shutoff, accurate hose indexing, easy-to-read speedometer
- Gun Cart Options: 46″ clearance cart for medium/low crops or 62″ clearance cart for tall crops; galvanized, 3-wheel adjustable width design with optional riser extensions
- Feeder Hose: 4″ x 25′ standard connection hose supplied
Optional Features
- Chain-Style Stabilizer Jacks: For rapid dropping of jacks, no bending, no pulling of pins. Note: not ideal for hard ground.
- Hydraulic Stabilizers: Perfect for hard ground or when raising/lowering from the tractor cab is preferred.
- Quick Hitch and Tractor Lift Bar: Hook up to tow without leaving the tractor seat.
- Sprinkler Kit: Manually controlled sprinkler mounted to the traveller body to cover close-in areas missed by the main gun.
- 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to blow water out for lighter towing or winterization.
- Gauge Protector Kit: Protects pressure gauges in manure applications.
- Murphy Shut Down Gauge: High/low gauge that shuts the reel down if pressure drops below or spikes above preset levels.
