Product Description

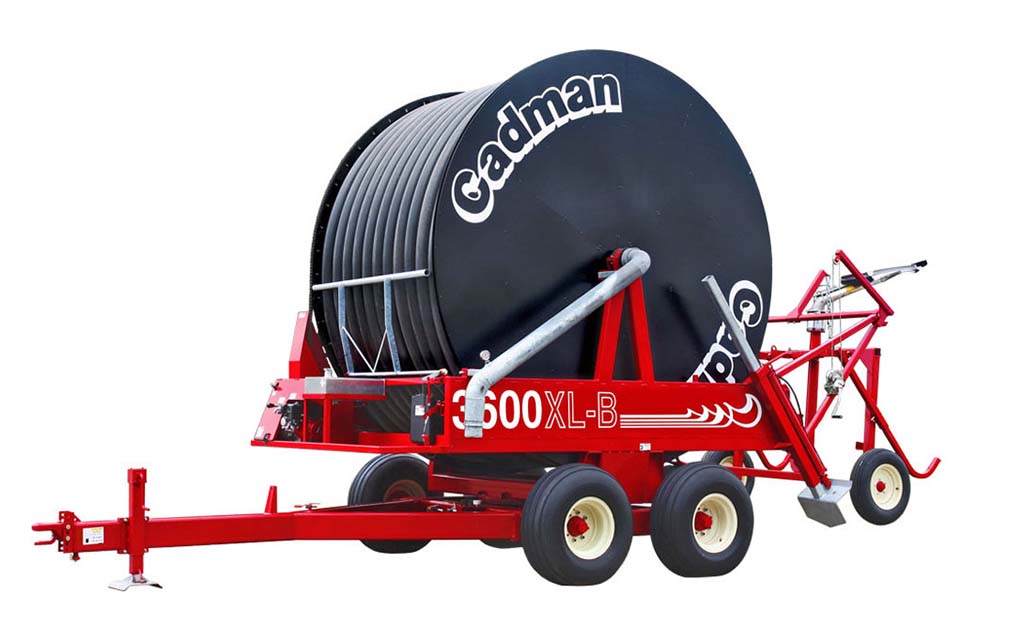

The Cadman 3600XL-B Traveller delivers strength and consistency for demanding irrigation needs. Featuring a 2250′ hose, durable drum construction, and Cadman’s proven transmission system, it provides stable performance across crops and soil types. Its set-and-forget design minimizes downtime while maximizing coverage efficiency.
- Extended capacity – 2250′ hose length (685 m) supports large-scale irrigation.
- Robust construction – oversized drum core, reinforced bearings, and heavy-duty stabilizers.
- Efficient performance – Honda OHV engine with Cadman transmission (10-year warranty).
- Operator convenience – auto-stop, hose mis-wrap safety, and accurate hose indexing.
Product Info
- Model: Cadman 3600XL-B Traveller
- Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
- Drum & Frame: Oversized heavy-duty drum with positive traction chain drive; slewing ring turntable for multi-direction pulls; long-lasting lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
- Hose I.D.: 3.6″ (91 mm)
- Hose Length: 2250′ (685 m)
- Input Pressure at Traveller: 130–150 PSI (9–10 bar)
- Gun Pressure: 80–90 PSI (5.5–6 bar)
- Flow Rate: 250–350 GPM (945–1325 L/min)
- Plumbing: 5″ inlet plumbing reduces friction loss, ensuring maximum pressure delivery to the gun
- Control & Safety: Automatic stop at end of pull, hose mis-wrap safety shutoff, accurate hose indexing, easy-to-read speedometer
- Gun Cart Options: 46″ clearance cart for medium/low crops or 62″ clearance cart for tall crops; galvanized 3-wheel adjustable width design with optional riser extensions
- Feeder Hose: 4″ x 25′ standard connection hose supplied
Optional Features
- Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pulling pins. Not ideal for hard ground.
- Hydraulic Stabilizers: Best for hard ground or for operators who prefer tractor-cab control.
- Quick Hitch and Tractor Lift Bar: Hook up to tow without leaving the tractor seat.
- Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
- 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
- Gauge Protector Kit: Shields pressure gauges during manure applications.
- Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.
Videos
…coming soon!
