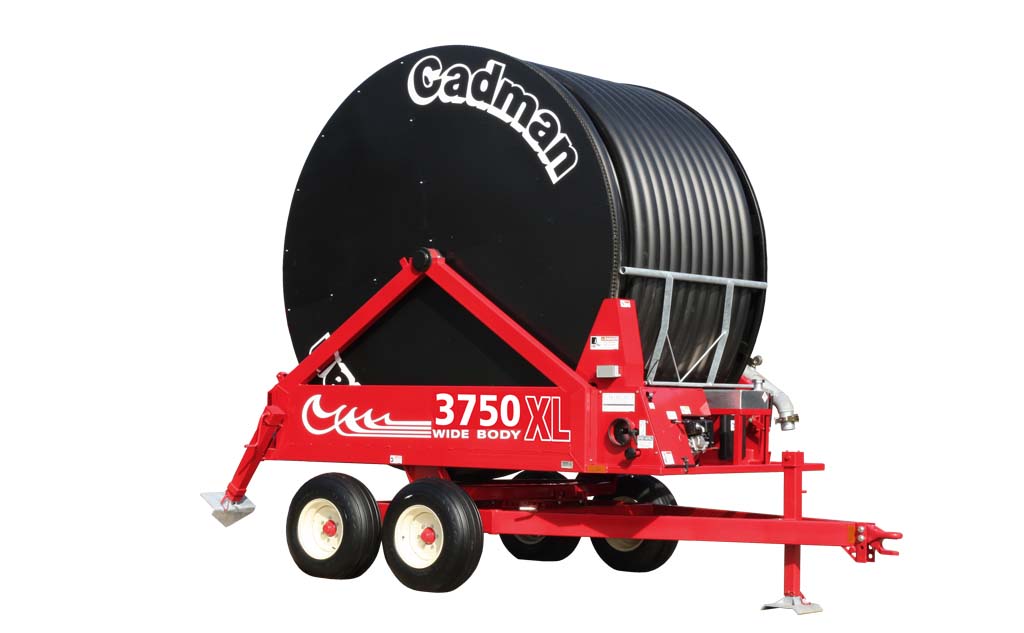

3750XL WB Traveller

The Cadman 3750XL WB Traveller is engineered for larger fields and extended irrigation runs. With a longer 1320′ hose, powerful Honda OHV engine, and Cadman’s durable transmission, it provides efficient, reliable, and low-maintenance irrigation performance under the toughest field conditions.

• Extended range – longer hose (1320′) supports large-acreage irrigation.
• Heavy-duty build – oversized drum, slewing ring turntable, and long-life nylon bearings ensure strength and reliability.
• Efficient operation – Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty).
• Built-in safety – auto-stop, hose mis-wrap protection, and accurate hose indexing for peace of mind.

• Model: Cadman 3750XL WB Traveller
• Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
• Drum & Frame: Oversized heavy-duty drum with positive traction chain drive; slewing ring turntable for multi-direction pulls; long-lasting lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
• Hose I.D.: 3.75″ (95 mm)
• Hose Length: 1320′ (424 m)
• Input Pressure at Traveller: 130–150 PSI (9–10 bar)
• Gun Pressure: 80–90 PSI (5.5–6 bar)
• Flow Rate: 300–400 GPM (1135–1515 L/min)
• Plumbing: 4″ inlet plumbing reduces friction loss, maximizing pressure at the gun
• Control & Safety: Auto-stop at end of pull, hose mis-wrap safety shutoff, accurate hose indexing, easy-to-read speedometer
• Gun Cart Options: 46″ clearance cart for medium/low crops or 62″ clearance cart for tall crops; galvanized 3-wheel adjustable width design with optional riser extensions
• Feeder Hose: 4″ x 25′ standard connection hose supplied

• Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pins. Not recommended for hard ground.
• Hydraulic Stabilizers: Ideal for hard ground or operators who prefer tractor-cab control.
• Quick Hitch and Tractor Lift Bar: Tow without leaving the tractor seat.
• Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
• 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
• Gauge Protector Kit: Shields pressure gauges during manure applications.
• Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.
