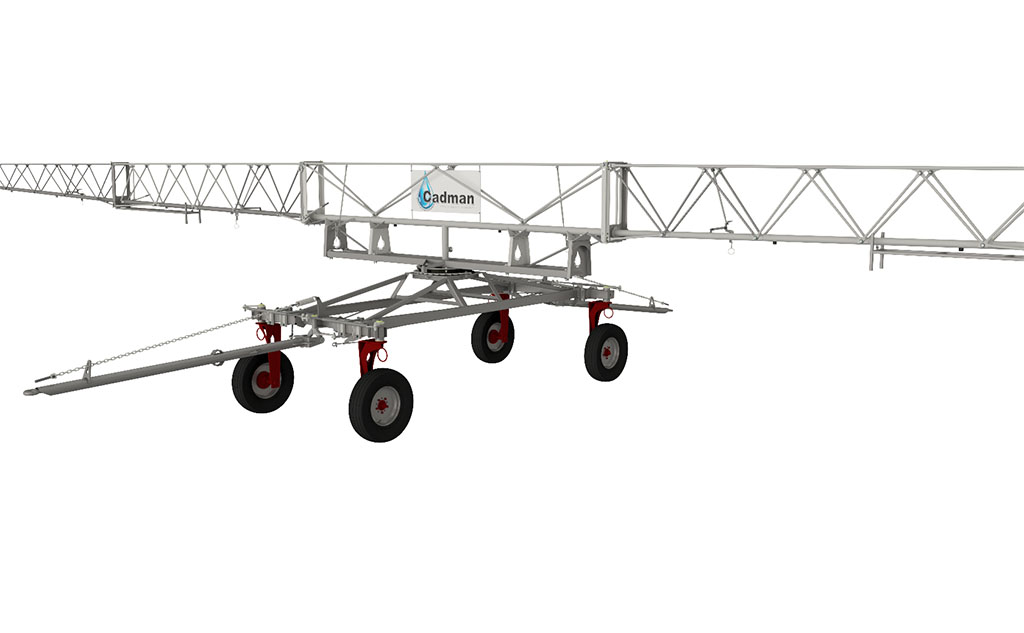

4 Wheel Irrigation Boom

The Cadman 4-Wheel Boom is designed for maximum stability, durability, and coverage in larger fields. Its four-wheel frame provides superior balance on uneven ground while ensuring precise water distribution. Operating at low pressure, it minimizes energy use and pipeline wear, while adjustable droplet sizes safeguard soil and crop health. With models available up to 76 m, the 4-Wheel Boom is ideal for growers needing efficiency, reliability, and long-lasting performance under demanding irrigation conditions.

Benefits

• Controlled droplet size reduces soil damage and disease risk.
• Large or fine droplets can be selected to match crop needs.
• Low-pressure operation reduces pumping costs and pipeline strain.
• Sturdy galvanized steel construction ensures long service life.

Features

• Tough, efficient, and versatile for multiple crop types.
• Easy to fold and operate, handled by a single operator.
• Uniform application provides consistent crop growth.
• Saves up to 30% water compared to big-gun systems.
• Faster retraction for larger coverage in less time.
• Matches drip irrigation efficiency while cooling and washing crops.

CB32 Model

• Boom Length: 104’ (32 m)
• Lane Spacing: 104’ – 164’ (32 – 50 m)
• Flow Range: 51 – 184 GPM (193 – 697 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 14
• Folded Length: 31’ (9.4 m)
• Folded Width: 6.75’ (2 m)
• Track Width: 60” – 80” (1.5 – 2 m), wide option 120”
• Height to Nozzle: 6.25’ (1.9 m)
• Height to Top of Structure: 8.25’ (2.5 m)
• Weight: 2,410 lbs. (1,093 kg)

CB42 Model

• Boom Length: 104’ (32 m)
• Lane Spacing: 138’ – 207’ (42 – 63 m)
• Flow Range: 73 – 225 GPM (276 – 852 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 18
• Folded Length: 31’ (9.4 m)
• Folded Width: 8’ (2.5 m)
• Track Width: 60” – 80” (1.5 – 2 m), wide option 120”
• Height to Nozzle: 6.25’ (1.9 m)
• Height to Top of Structure: 8.68’ (2.64 m)
• Weight: 2,820 lbs. (1,279 kg)

CB64 Model

• Boom Length: 210’ (64 m)
• Lane Spacing: 210’ – 300’ (64 – 91 m)
• Flow Range: 80 – 400 GPM (302 – 1,514 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 22
• Folded Length: 31.5’ (9.6 m)
• Folded Width: 12’ (3.65 m)
• Track Width: 60” – 80” (1.5 – 2 m), wide option 120”
• Height to Nozzle: 5’ (1.5 m)
• Height to Top of Structure: 9.6’ (2.93 m)
• Weight: 5,000 lbs. (2,267 kg)

CB64 High Crop Model

• Boom Length: 210’ (64 m)
• Lane Spacing: 210’ – 300’ (64 – 91 m)
• Flow Range: 80 – 400 GPM (302 – 1,514 l/min)
• Operating Pressure: 15 – 60 PSI (1 – 4 bar)
• Outlets: 22
• Folded Length: 31.5’ (9.6 m)
• Folded Width: 12’ (3.65 m)
• Track Width: 60” – 80” (1.5 – 2 m), wide option 120”
• Height to Nozzle: 5’ – 10’ (1.5 – 3.1 m)
• Height to Top of Structure: 15’ (4.6 m)
• Weight: 5,594 lbs. (2,537 kg)
