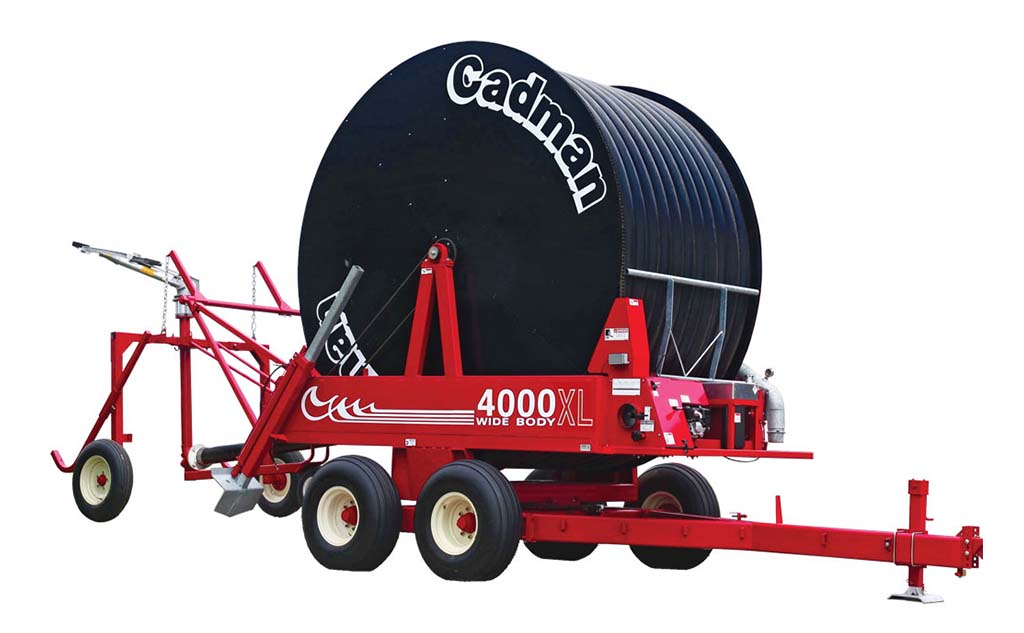

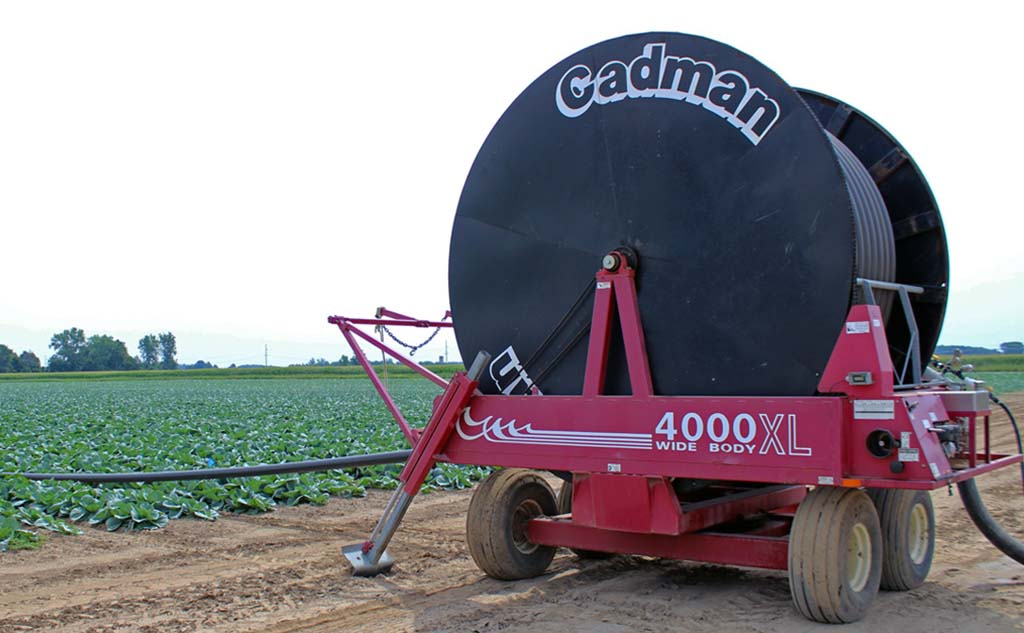

4000XL WB Traveller

The Cadman 4000XL WB Traveller provides reliable, large-volume irrigation performance with a 4.0″ hose for high-capacity water delivery. Built with a heavy-duty drum, rugged bearings, and Cadman’s proven transmission system, it combines efficiency with long-term durability for demanding applications.

• High-flow capability – 4.0″ (101 mm) hose, 1400′, 1550′ and 1850′ lengths.
• Durable build – oversized drum, heavy-duty stabilizers, reinforced components.
• Efficient design – Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty).
• Convenience & safety – auto-stop, hose mis-wrap safety, accurate indexing, easy speedometer monitoring.

• Model: Cadman 4000XL WB Traveller
• Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
• Drum & Frame: Heavy-duty oversized drum with positive traction chain drive; slewing ring turntable; lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
• Hose I.D.: 4.0″ (101 mm)
• Hose Length: 1400′, 1550′, 1850′
• Input Pressure at Traveller: 130–150 PSI (9–10 bar)
• Gun Pressure: 80–90 PSI (5.5–6 bar)
• Flow Rate: 290–375 GPM (1097–1420 L/min)
• Plumbing: 5″ plumbing design minimizes friction loss for efficient pressure at the gun
• Control & Safety: Auto stop at end of pull, hose build-up safety shutoff, accurate hose indexing, easy-to-read speedometer
• Gun Cart Options: 46″ clearance for medium/low crops or 62″ clearance for tall crops; galvanized 3-wheel adjustable cart with optional riser extensions
• Feeder Hose: 4″ x 25′ standard hose supplied

• Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pins. Not recommended for hard ground.
• Hydraulic Stabilizers: Ideal for hard ground or operators who prefer tractor-cab control.
• Quick Hitch and Tractor Lift Bar: Tow without leaving the tractor seat.
• Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
• 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
• Gauge Protector Kit: Shields pressure gauges during manure applications.
• Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.

…coming soon!
