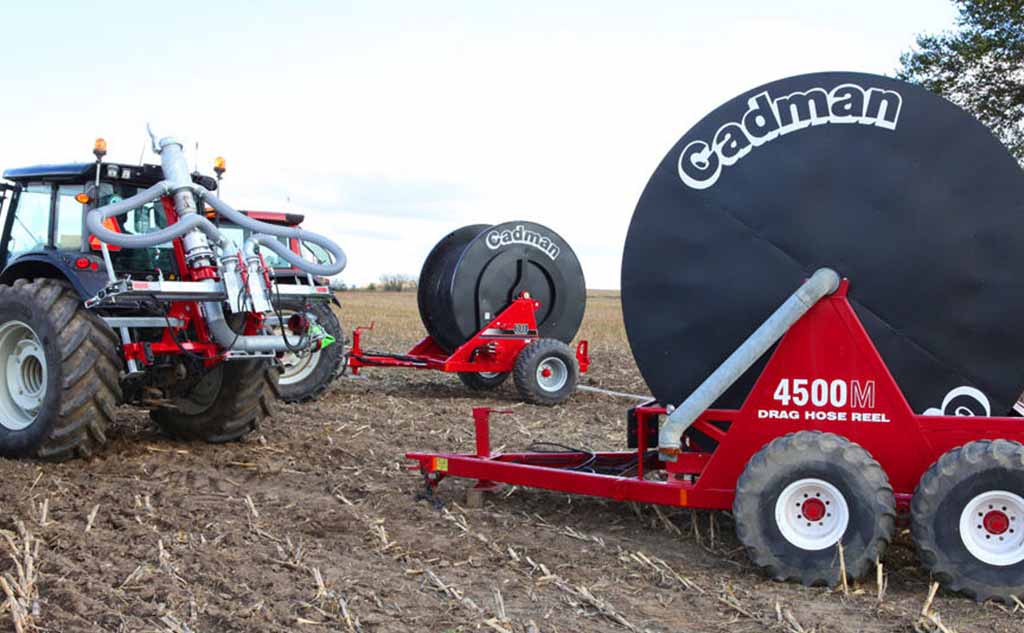

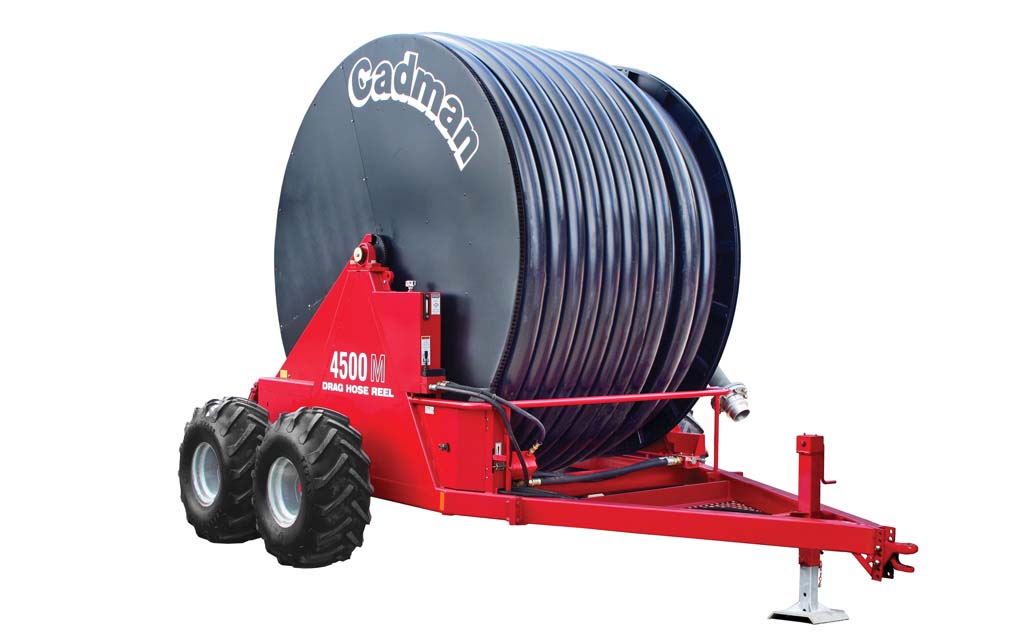

4500M Manure Reel

The Cadman 4500M Manure Reel is engineered for high-performance liquid manure application. Featuring a 4.5″ hose and 1320′ length, it combines heavy-duty construction, oversized plumbing, and Cadman’s proven Positive Traction chain drive. Designed for efficiency, it ensures even nutrient use, reduced soil compaction, and excellent return on investment.

• High-capacity application – 4.5″ (114 mm) hose, 1320′ length, 600–1000 GPM flow.
• Engineered strength – heavy-duty frame, tandem walking beam axle, hydraulic braking system.
• Efficient operation – oversized plumbing, reduced pressure loss, Positive Traction chain drive.
• Built-in value – 10x longer hose life, easier pulling, reduced fuel use, higher ROI.

• Model: Cadman 4500M Manure Reel
• Hose I.D. & Length: 4.5″ x 1320′ (114 mm x 402 m)
• Flow Rate: 600–1000 GPM (2270–3785 L/min)
• Axle: Tandem walking beam, 2-WB
• Weight: 10,100 lbs.
• Frame & Braking: Heavy-duty frame with hydraulic braking system
• Plumbing: Oversized design to minimize pressure loss
• Drive System: Cadman Positive Traction chain drive
• Tires: 16.5L x 16.1 power implement tires
• Coverage per Setup: Up to 75 acres
• Hose Performance: Hard hose design – resists twisting/dish-ragging, lasts 10x longer, easier towing with less fuel use
