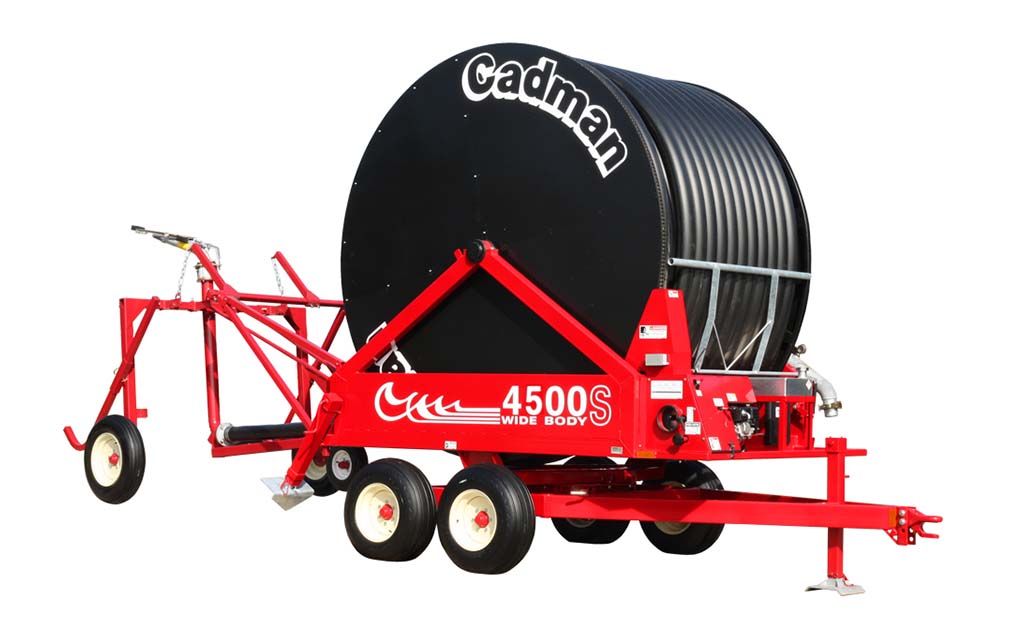

4500S WB Traveller

The Cadman 4500S WB Traveller is built for high-volume irrigation in large-acreage applications. Featuring a 1175′ hose, oversized 4.5″ I.D., and powerful Honda OHV engine with Cadman’s transmission, it ensures efficient, dependable, and safe operation under the toughest conditions.

• Extended coverage – 1175′ hose length and 4.5″ I.D. deliver maximum irrigation output.
• Heavy-duty build – oversized drum, slewing ring turntable, and lubricated nylon bearings for durability and long service life.
• Efficient operation – Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty).
• Built-in safety – auto-stop shutoff, hose mis-wrap safety, and accurate hose indexing.

• Model: Cadman 4500S WB Traveller
• Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
• Drum & Frame: Oversized heavy-duty drum with positive traction chain drive; slewing ring turntable for multi-direction pulls; long-lasting lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
• Hose I.D.: 4.5″ (114 mm)
• Hose Length: 1175′ (358 m)
• Input Pressure at Traveller: 130–150 PSI (9–10 bar)
• Gun Pressure: 80–90 PSI (5.5–6 bar)
• Flow Rate: 400–600 GPM (1515–2271 L/min)
• Plumbing: 4″ inlet plumbing reduces friction loss, maximizing pressure at the gun
• Control & Safety: Auto-stop at end of pull, hose mis-wrap safety shutoff, accurate hose indexing, easy-to-read speedometer
• Gun Cart Options: 46″ clearance cart for medium/low crops or 62″ clearance cart for tall crops; galvanized 3-wheel adjustable width design with optional riser extensions
• Feeder Hose: 4″ x 25′ standard connection hose supplied

• Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pulling pins. Not ideal for hard ground.
• Hydraulic Stabilizers: Best for hard ground or for operators who prefer tractor-cab control.
• Quick Hitch and Tractor Lift Bar: Hook up to tow without leaving the tractor seat.
• Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
• 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
• Gauge Protector Kit: Shields pressure gauges during manure applications.
• Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.

…coming soon!
