Product Description

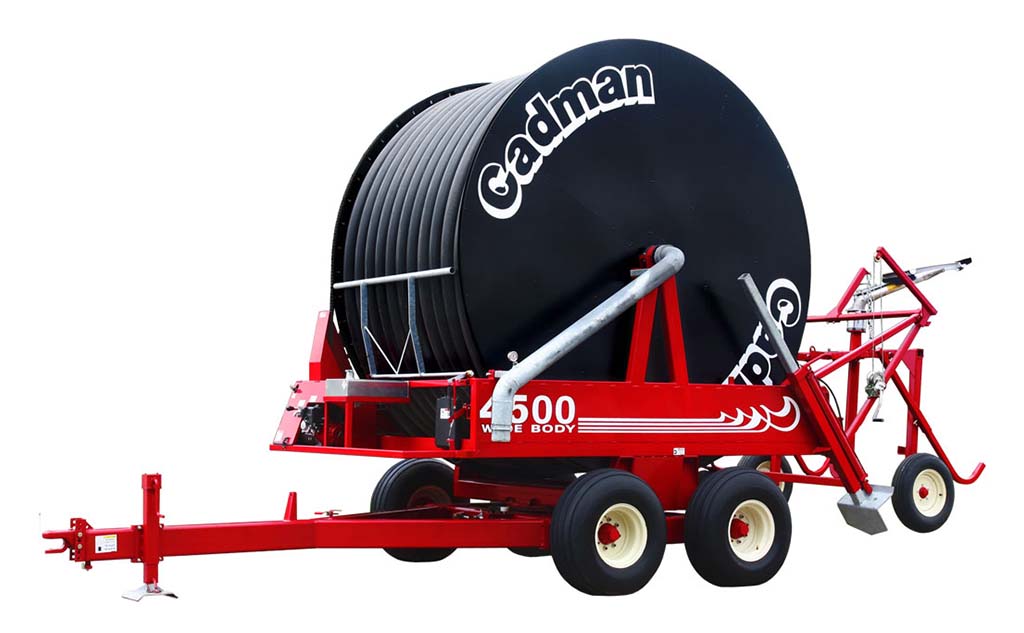

The Cadman 4500WB Traveller delivers powerful, reliable irrigation with its 4.5″ hose and 1320′ reach. Designed with Cadman’s legendary transmission, heavy-duty drum, and precision safety features, it ensures consistent water delivery, lower operating costs, and dependable performance in demanding agricultural environments.
- High-volume performance – 4.5″ (114 mm) hose, 1320′ length.
- Rugged construction – oversized drum, reinforced bearings, heavy-duty stabilizers.
- Efficient drive – Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty).
- Safety built-in – auto stop, hose mis-wrap shutoff, accurate hose indexing, easy-read speedometer.
Product Info
- Model: Cadman 4500WB Traveller
- Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
- Drum & Frame: Heavy-duty oversized drum with positive traction chain drive; slewing ring turntable; long-life lubricated nylon drum bearings; heavy-duty crank-down stabilizers standard
- Hose I.D.: 4.5″ (114 mm)
- Hose Length: 1320′ (402 m)
- Input Pressure at Traveller: 130–150 PSI (9–10 bar)
- Gun Pressure: 80–90 PSI (5.5–6 bar)
- Flow Rate: 400–550 GPM (1515–2082 L/min)
- Plumbing: 5″ plumbing for reduced friction loss, maximizing pressure at the gun
- Control & Safety: Auto stop at end of pull, hose build-up safety shutoff, accurate hose indexing, easy-to-read speedometer
- Gun Cart Options: 46″ clearance for medium/low crops or 62″ clearance for tall crops; galvanized steel 3-wheel adjustable cart; riser extensions available
- Feeder Hose: 4″ x 25′ standard hose supplied
Optional Features
- Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pulling pins. Not ideal for hard ground.
- Hydraulic Stabilizers: Best for hard ground or for operators who prefer tractor-cab control.
- Quick Hitch and Tractor Lift Bar: Hook up to tow without leaving the tractor seat.
- Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
- 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
- Gauge Protector Kit: Shields pressure gauges during manure applications.
- Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.
