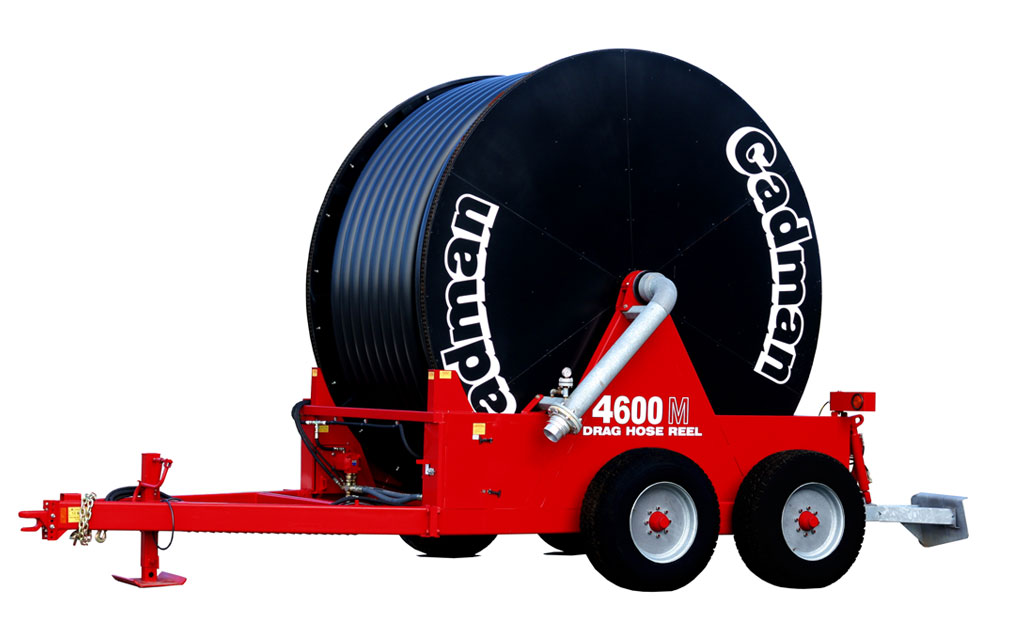

4600M Manure Reel

The Cadman 4600M Manure Reel is engineered for maximum efficiency and durability in liquid manure application. Built with a 4.6″ hose and 1550′ reach, it combines heavy-duty construction, oversized plumbing, and advanced hydraulic systems for smooth, safe operation and long-lasting performance.

• High-capacity application – 4.6″ (117 mm) hose, 1550′ length, 600–1000 GPM flow.
• Engineered strength – heavy-duty frame, tandem walking beam axle, radial tires.
• Hydraulic control – hose retrieval, stabilizer legs, and braking system.
• Smart safety – automatic hose retrieval stop, electric/hydraulic disc brakes.
• Efficient operation – oversized plumbing, Positive Traction chain drive, reduced pressure loss

• Model: Cadman 4600M Manure Reel
• Hose I.D. & Length: 4.6″ x 1550′ (117 mm x 472 m)
• Flow Rate: 600–1000 GPM (2270–3785 L/min)
• Axle: Tandem walking beam, 2-WB
• Weight: 19,000 lbs.
• Frame & Braking: Heavy-duty frame, hydraulic braking system, electric/hydraulic disc brakes
• Plumbing: Oversized design to reduce pressure loss
• Drive System: Cadman Positive Traction chain drive
• Tires: 445/65R22.5 radial tires
• Coverage per Setup: Up to 105 acres; 60,000 gal/h capacity
• Hydraulic Features: Hose retrieval system, stabilizer legs, hydraulic braking control
• Safety: Automatic hose retrieval stop for dependable operation
