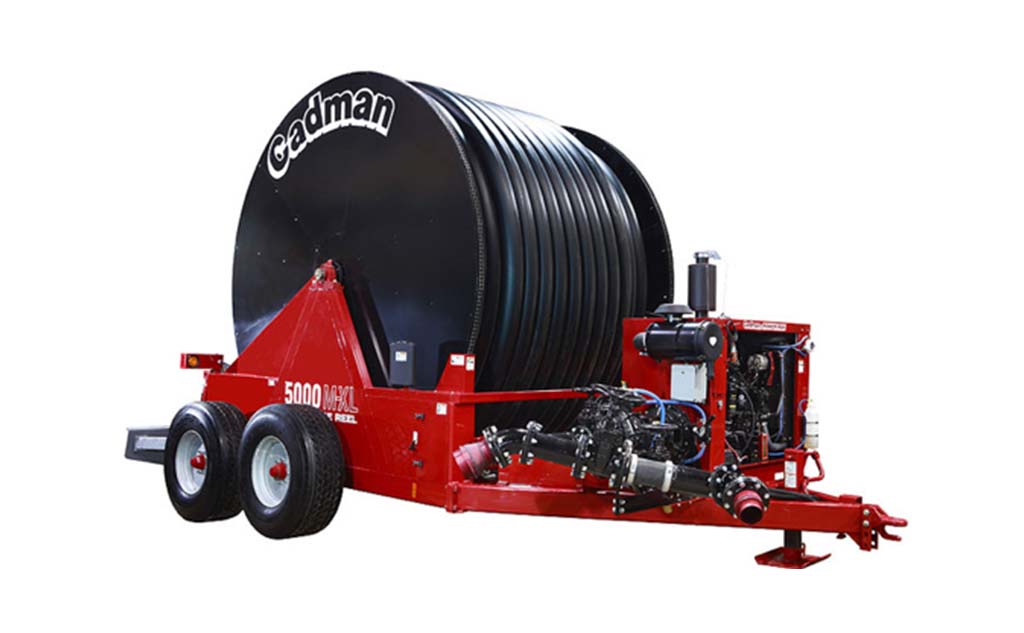

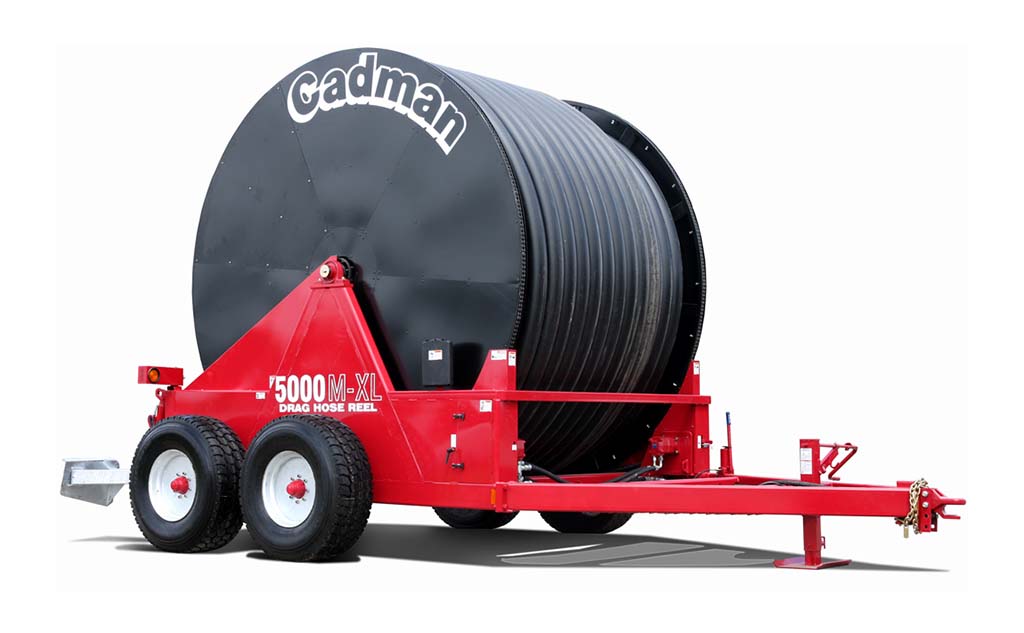

5000M XL Manure Reel

The Cadman 5000M XL Manure Reel is a high-capacity liquid manure application system designed for large-scale efficiency. With a 5.0″ hose and 2000′ reach, it combines rugged frame strength, advanced hydraulics, and Cadman’s Positive Traction drive to maximize flow rates while reducing operating costs and soil compaction.

• High-capacity application – 5.0″ (127 mm) hose, 2000′ length, 850–1150 GPM flow.
• Engineered strength – heavy-duty frame, tandem walking beam axle, radial tires.
• Hydraulic control – hose retrieval, stabilizer legs, and braking system.
• Smart safety – automatic hose retrieval stop, electric/hydraulic disc brakes.
• Efficient operation – oversized plumbing, Positive Traction chain drive, reduced pressure loss.

• Model: 5000M XL Manure Reel
• Hose I.D. & Length: 5.0″ x 2000′ (127 mm x 610 m)
• Flow Rate: 850–1150 GPM (3217–4356 L/min)
• Axle: Tandem walking beam, 2-WB
• Weight: 22,500 lbs.
• Frame & Braking: Heavy-duty frame, hydraulic braking system, electric/hydraulic disc brakes
• Plumbing: Oversized design to reduce pressure loss
• Drive System: Cadman Positive Traction chain drive
• Tires: 445/65R22.5 radial tires
• Coverage per Setup: Up to 160 acres; 64,500 gal/h capacity
• Hydraulic Features: Hose retrieval system, stabilizer legs, hydraulic braking control
• Safety: Automatic hose retrieval stop for dependable operation
