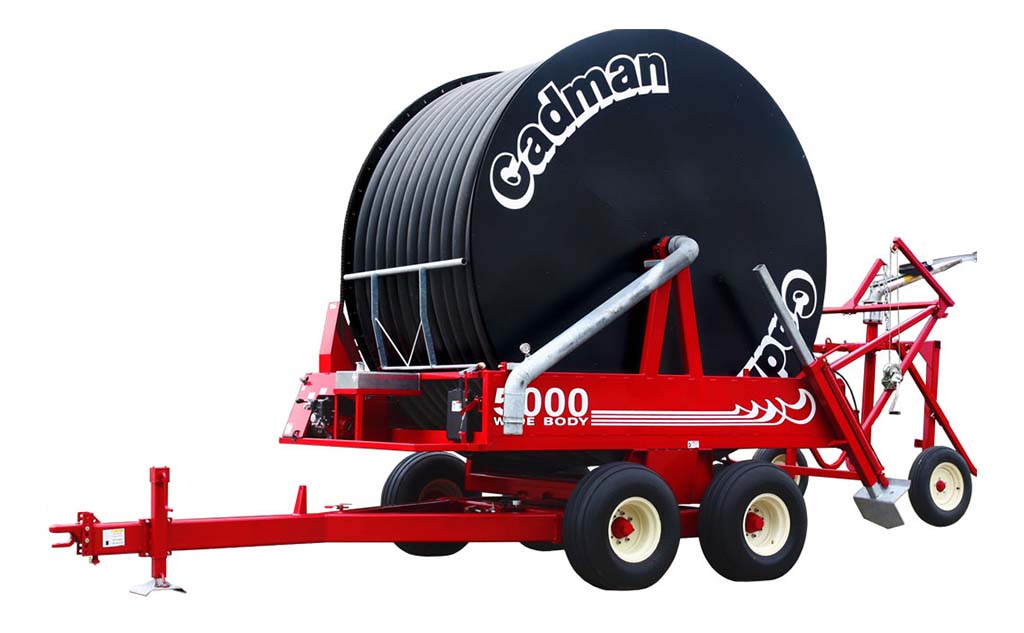

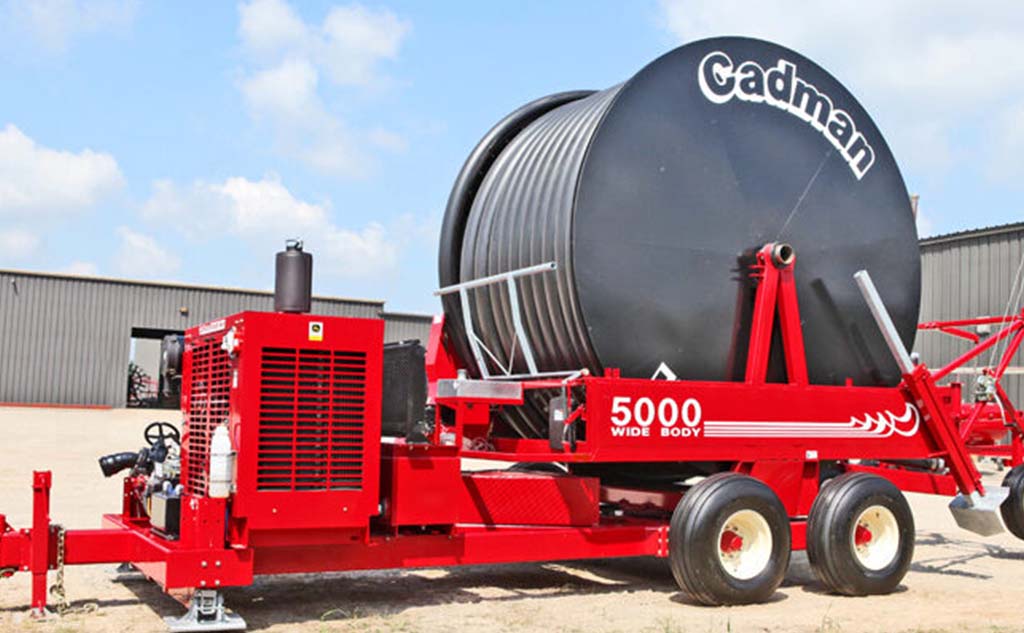

5000WB Traveller

The Cadman 5000WB Traveller is a high-capacity irrigation machine designed to handle the most demanding applications. Featuring a 5.0″ hose and 1200′ reach, it combines Cadman’s industry-leading drive system, durable drum, and smart safety features to ensure reliable water delivery and reduced operating costs.

• High-capacity irrigation – 5.0″ (127 mm) hose, 1200′ length.
• Engineered strength – oversized drum, reinforced nylon bearings, heavy-duty stabilizers.
• Efficient power – Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty).
• Built-in safety – automatic stop, hose mis-wrap shutoff, accurate indexing, and clear speedometer readout.

• Model: Cadman 5000WB Traveller
• Engine & Drive: Honda OHV 5.5 HP engine with Cadman transmission (10-year warranty)
• Drum & Frame: Oversized heavy-duty drum, slewing ring turntable, positive traction chain drive, lubricated nylon drum bearings, crank-down stabilizers standard
• Hose I.D.: 5.0″ (127 mm)
• Hose Length: 1200′ (365 m)
• Input Pressure at Traveller: 130–150 PSI (9–10 bar)
• Gun Pressure: 80–90 PSI (5.5–6 bar)
• Flow Rate: 550–900 GPM (2082–3407 L/min)
• Plumbing: 5″ plumbing for maximum pressure transfer and reduced friction loss
• Control & Safety: Automatic stop at end of pull, hose safety shutoff, accurate hose indexing, easy-to-read speedometer
• Gun Cart Options: 46″ clearance for medium/low crops or 62″ clearance for tall crops; galvanized 3-wheel adjustable steel cart; riser extensions available
• Feeder Hose: 4″ x 25′ standard hose supplied

• Chain-Style Stabilizer Jacks: Quick-drop design; no bending or pulling pins. Not ideal for hard ground.
• Hydraulic Stabilizers: Best for hard ground or for operators who prefer tractor-cab control.
• Quick Hitch and Tractor Lift Bar: Hook up to tow without leaving the tractor seat.
• Sprinkler Kit: Manually controlled sprinkler mounted on the traveller body for close-in coverage missed by the main gun.
• 4″ Blow Out Adapter with ¼″ Inlet: Use air pressure to clear water for lighter towing or winterization.
• Gauge Protector Kit: Shields pressure gauges during manure applications.
• Murphy Shut Down Gauge: High/low gauge shuts reel down if pressure drops or spikes beyond preset levels.

…coming soon!
