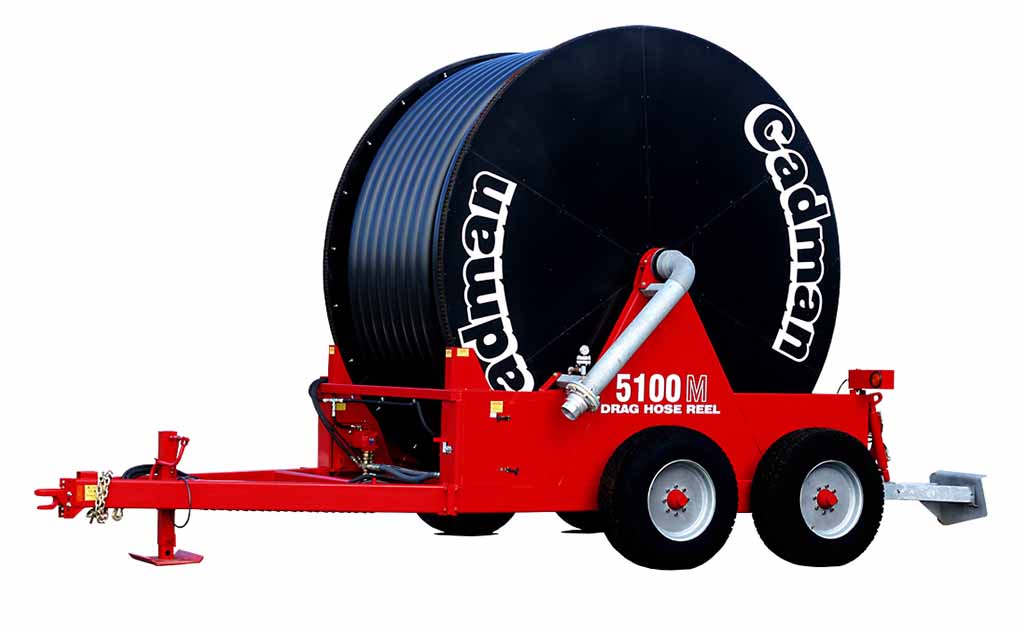

5100M Manure Reel

The Cadman 5100M Manure Reel is engineered for maximum liquid manure application efficiency. Featuring a 5.1″ hose and 1400′ reach, it combines rugged frame strength, advanced hydraulics, and safety features with Cadman’s proven Positive Traction drive for consistent, low-maintenance performance.

• High-capacity application – 5.1″ (130 mm) hose, 1400′ length, 900–1400 GPM flow.
• Engineered strength – heavy-duty frame, tandem walking beam axle, radial tires.
• Hydraulic control – hose retrieval, stabilizer legs, and braking system.
• Smart safety – automatic hose retrieval stop, electric/hydraulic disc brakes.
• Efficient operation – oversized plumbing, Positive Traction chain drive, reduced pressure loss.

• Model: 5100M-XL Manure Reel
• Hose I.D. & Length: 5.1″ x 1400′ (130 mm x 427 m)
• Flow Rate: 900–1400 GPM (3407–5300 L/min)
• Axle: Tandem walking beam, 2-WB
• Weight: 22,500 lbs.
• Frame & Braking: Heavy-duty frame, hydraulic braking system, electric/hydraulic disc brakes
• Plumbing: Oversized design to reduce pressure loss
• Drive System: Cadman Positive Traction chain drive
• Tires: 445/65R22.5 radial tires
• Coverage per Setup: Up to 80 acres; 84,000 gal/h capacity
• Hydraulic Features: Hose retrieval system, stabilizer legs, hydraulic braking control
• Safety: Automatic hose retrieval stop for dependable operation
